TITANIUM 6246 - AMS 4981


The main characteristics of 6246 are being light weight with exceptional strength and corrosion resistance. This high-performance alloy contains 6% aluminum and 4% zirconium along with titanium and trace elements.

The addition of aluminum and zirconium gives 6246 titanium increased strength compared to commercially pure titanium grades. It has an ultimate tensile strength around 1100 MPa, nearly double that of the Ti-6Al-4V alloy. Yet 6246 remains relatively light, with a density of 4.54 g/cm3.

Components made from 6246 can withstand tremendous mechanical stresses while remaining incredibly light.

6246 titanium offers great resistance to corrosion, the aluminum and vanadium stabilise the alloy against oxidation and prevent degradation.

Like other titanium alloys, 6246 is incredibly durable with a long service life. Products made from this alloy can withstand heavy wear and tear over years of use with minimal maintenance required. The material does not suffer from fatigue, galling, or seizing issues.

From a manufacturing perspective, 6246 titanium can be readily formed using standard metalworking techniques like machining, welding, and forming. However, the material is considered more difficult to process compared to other titanium grades due to its higher strength.

Whether used to construct aircraft components, high-performance automotive parts, or professional-grade sports gear, 6246 titanium delivers an unbeatable combination of strength, light weight, and corrosion resistance.

Typical Applications

Related Specifications

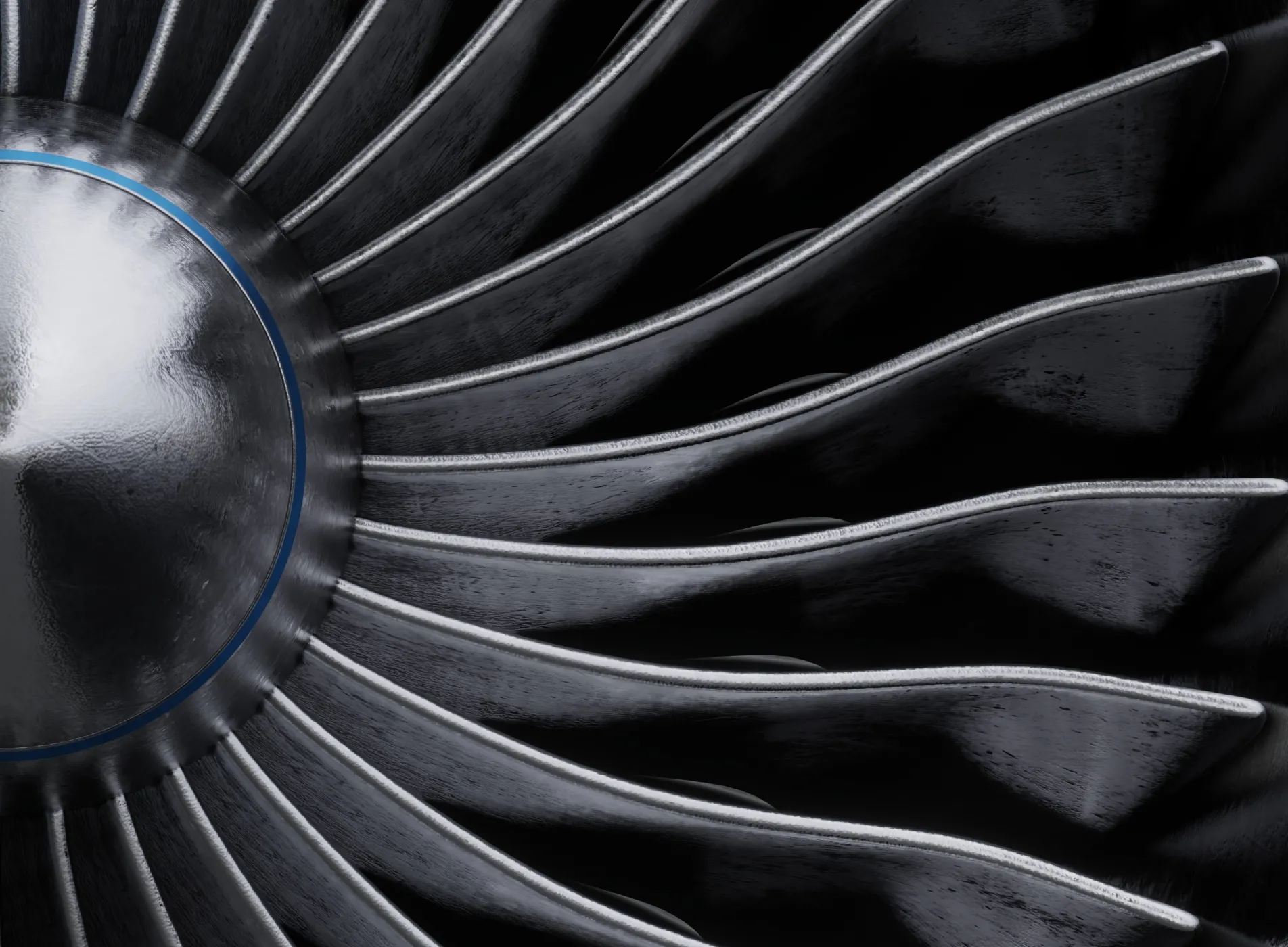

Compressor Discs and fan blades

Airframe components

Motor racing drivetrain components

Subsea sour service

AMS 4981


UNS R56260

NACE MR01-75

Chemical Composition (Wt %)


  Al Sn Zr Mo Fe N O C H
Min 5.5 1.75 3.5 5.5
Max 6.5 2.25 4.5 6.5 0.15 0.04 0.15 0.04 0.0125

Typical Mechanical Properties


  0.2% Proof Stress Tensile Strength Elongation Reduction of area
   MPA MPA % %
Range: 1020-1150 1090-1240 13-16 37-42
 Note 1: Variations in mechanical properties are dependent on condition / heat treatment
* Every effort has been made to ensure that our technical specifications are accurate. However, technical specifications included within Dynamic Metals Ltd should be used as a guideline only and are subject to change without notice.
